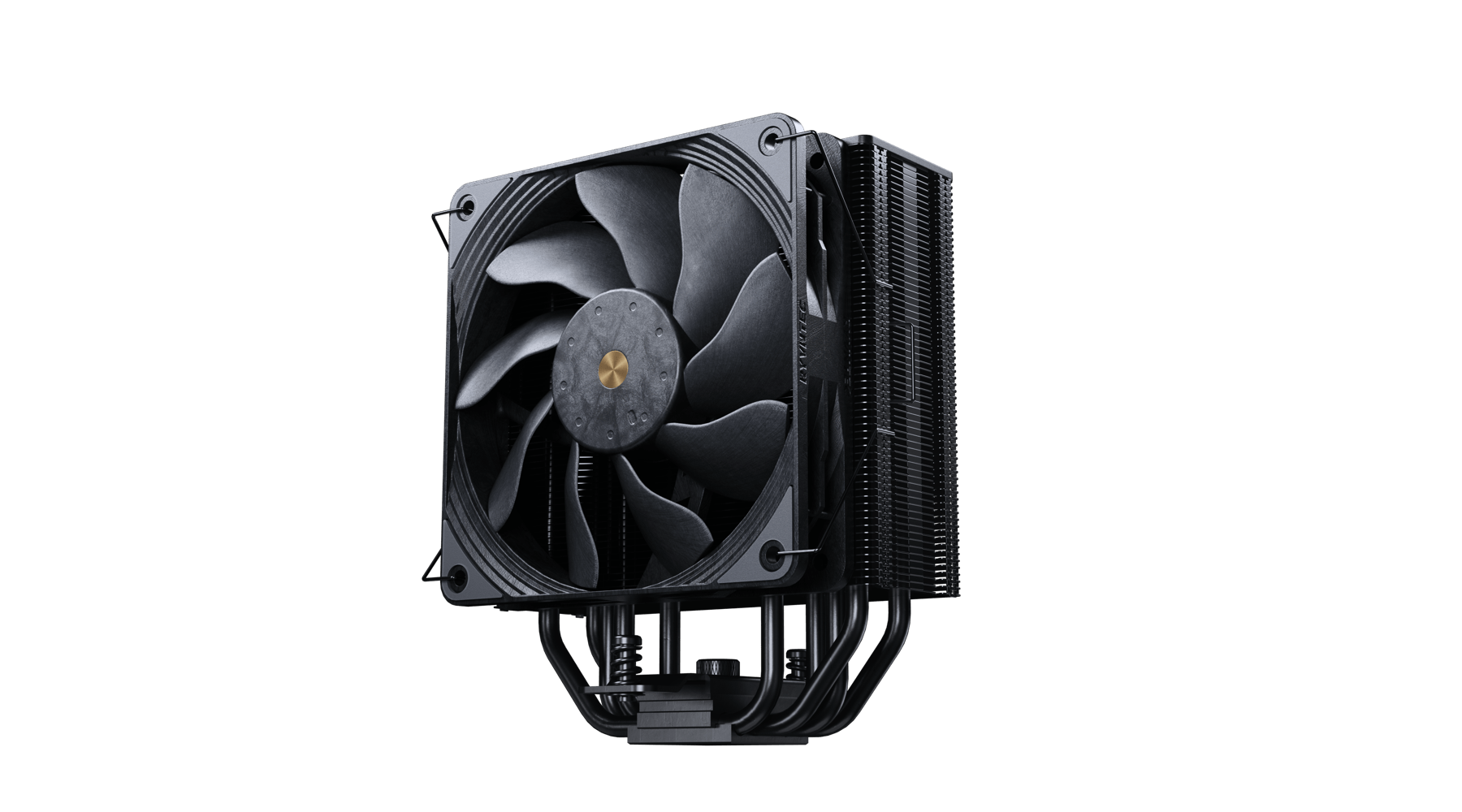

Nova Series Air Cooler
NT510
NOVA NT510 LCP PRO BK
A high-performance single-tower air cooler with five 6 mm heatpipes, a blacked-out fin stack, and one R25 LCP PRO 120 mm fan for focused desktop CPU cooling.
Single-tower cooling, sharpened with flagship fan hardware. Five heatpipes. One R25 LCP PRO fan. Full-platform mounting.
Thermal Architecture
Designed for sustained high-wattage CPU loads.
NT510 combines a compact black fin stack, bidirectional heatpipe behavior, and high-pressure R25 airflow to move heat out of the socket area with control.

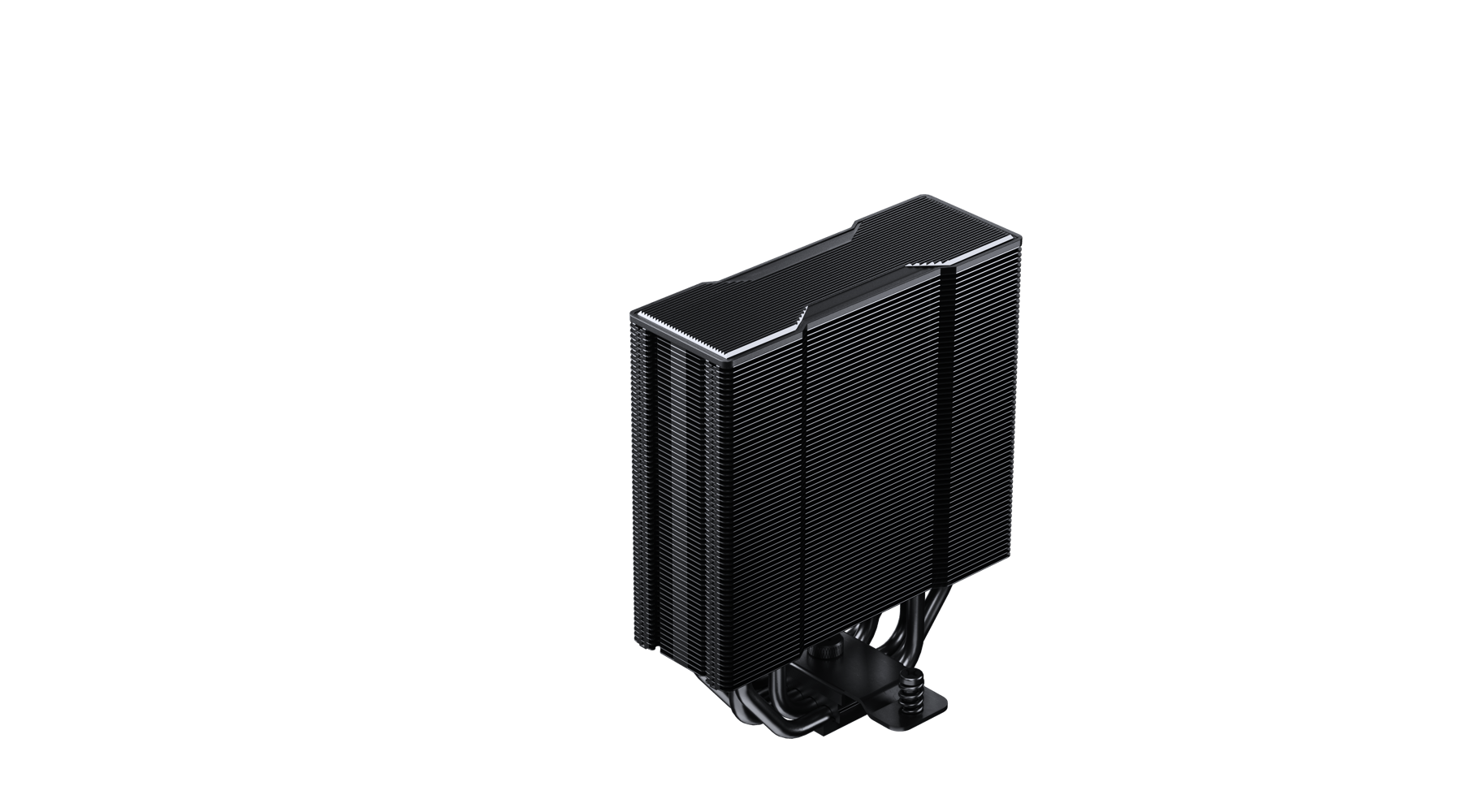

Single-Tower Structure
A dense black tower for strong case compatibility.
The single-tower layout keeps the cooler narrow while preserving fin density, giving high airflow access without the footprint of a dual-tower design.

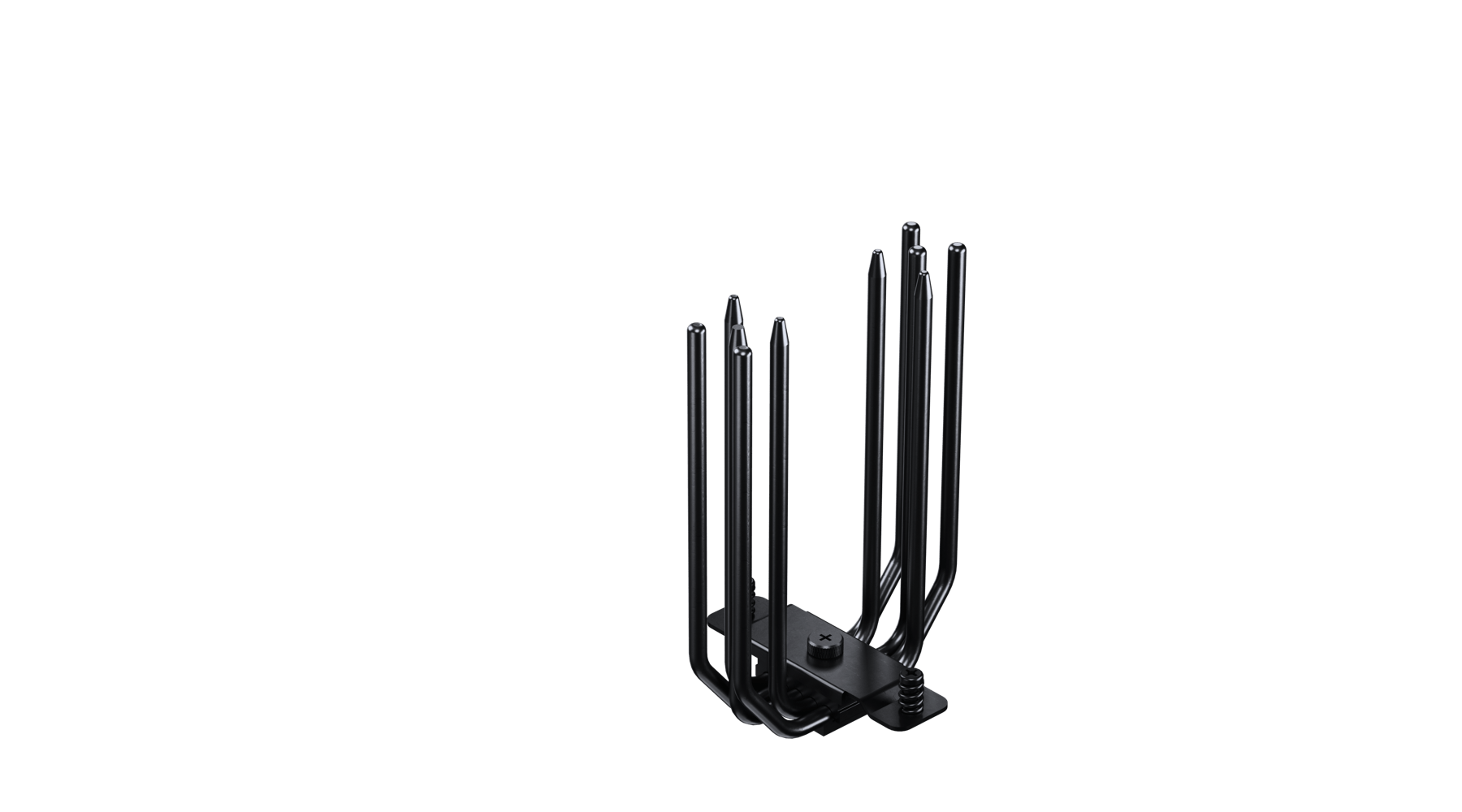

5 x 6 mm Heatpipes
Bidirectional heat transfer from the copper base.
Five black-coated heatpipes draw heat from the CPU contact area and distribute it through the tower for lower resistance under broad input loads.

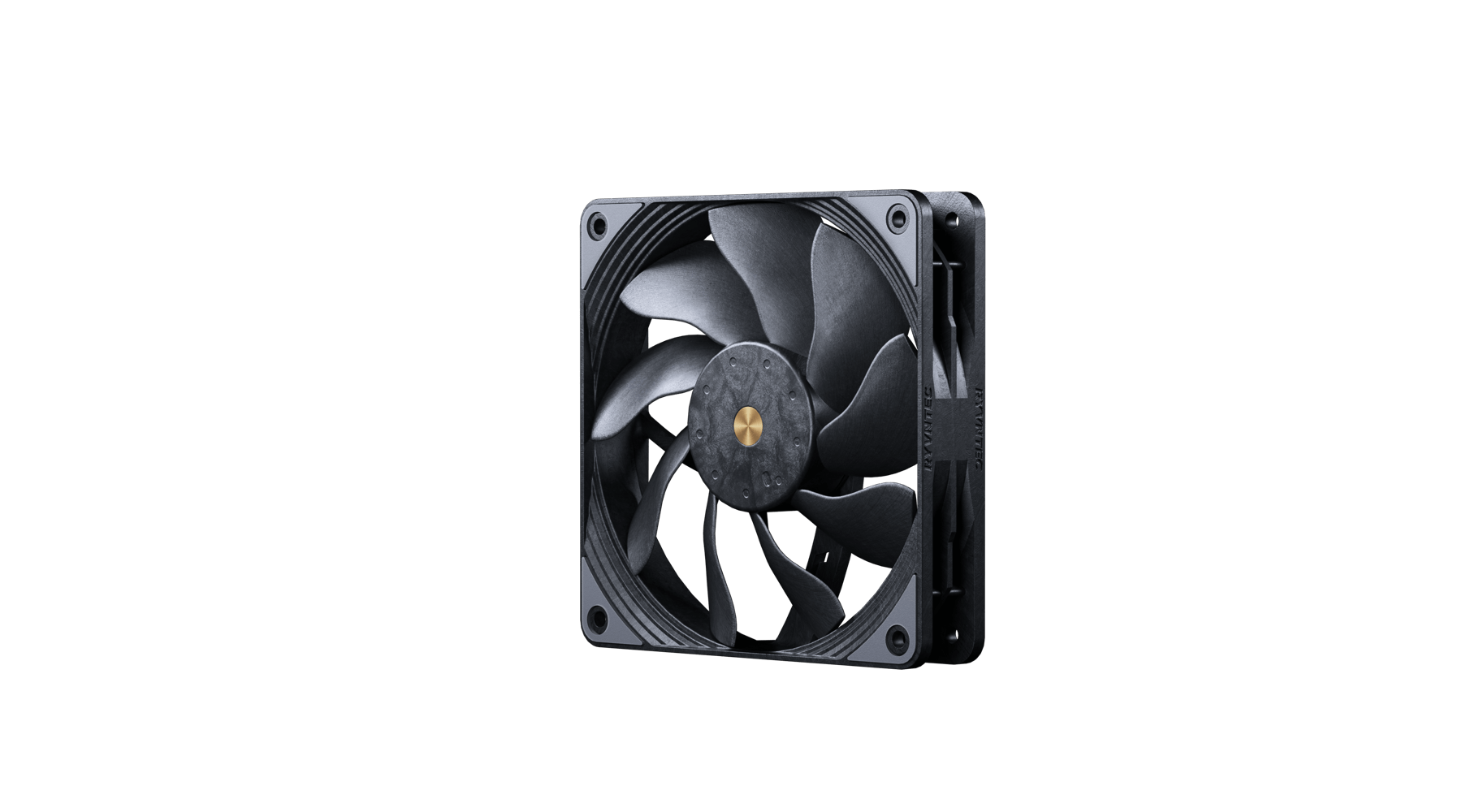

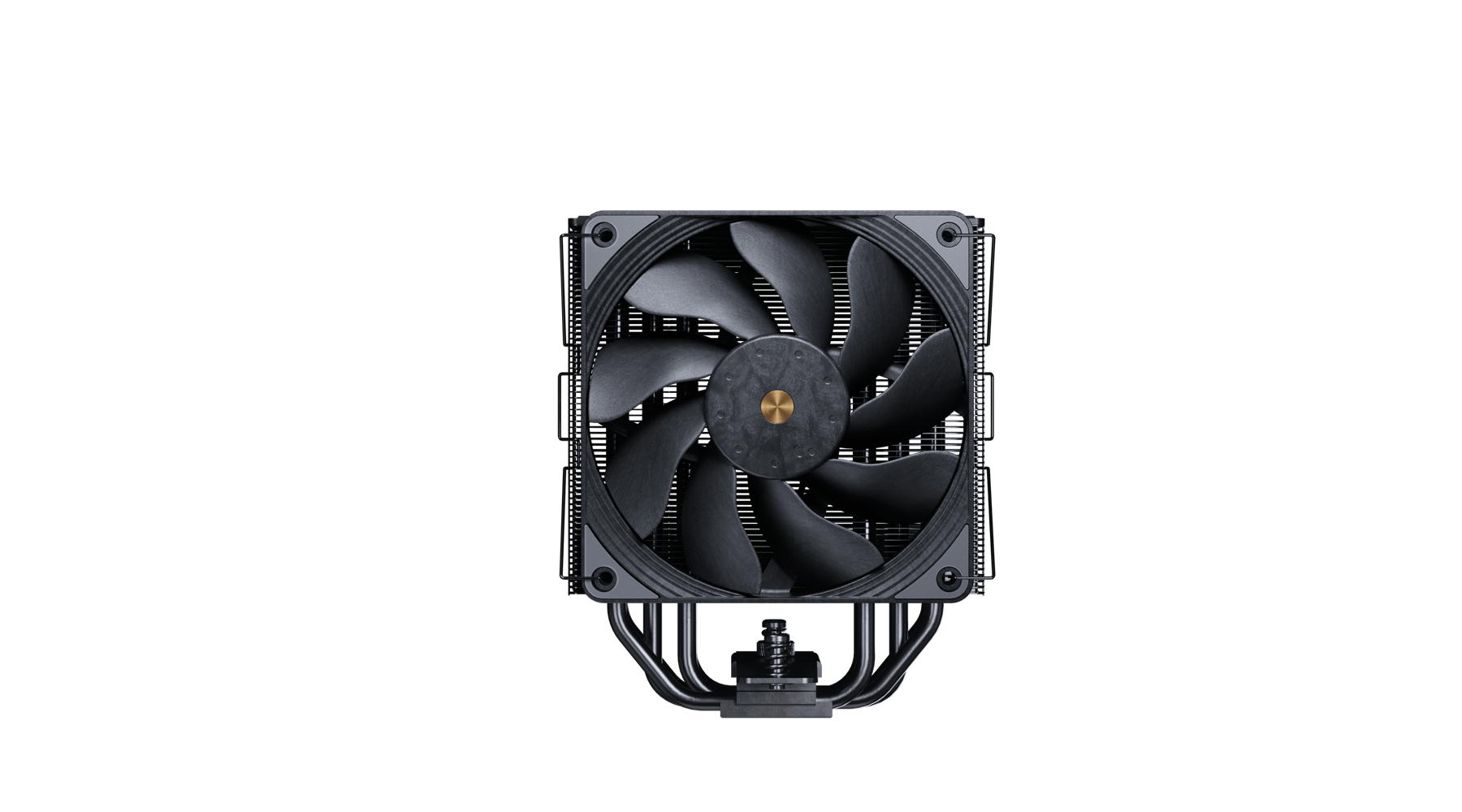

R25 LCP PRO Fan
Flagship 120 mm airflow on a single tower.
The included R25 LCP PRO fan uses LCP blades, dual ball bearings, and three PWM profiles to balance high static pressure, airflow, and acoustic control.- Airflow
- 131.32 CFM
- Pressure
- 6.55 mm-H2O
- Noise
- 45.56 dBA
- Airflow
- 104.54 CFM
- Pressure
- 4.64 mm-H2O
- Noise
- 39.81 dBA
- Airflow
- 70.38 CFM
- Pressure
- 2.15 mm-H2O
- Noise
- 29.6 dBA
Three PWM Profiles
Select the output that fits the thermal load.
Turbo pushes maximum heat removal, Performance balances speed and acoustics, while Hybrid keeps daily loads controlled at a quieter operating point.

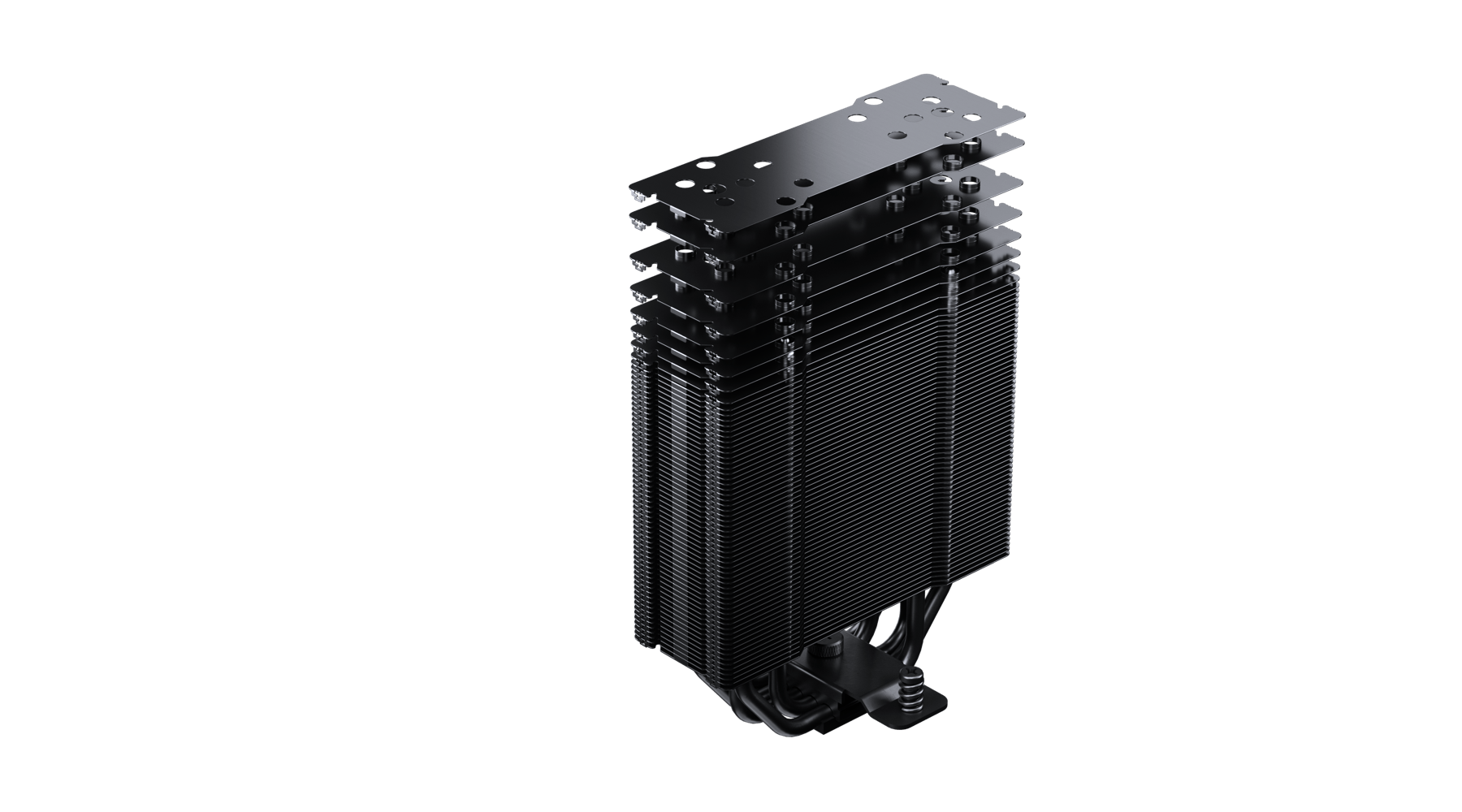

Fin Insertion Process
Through-fin and folded-fin reinforcement.
The fin stack uses a through-fin plus folded-fin process to tighten heatpipe contact, improve structural strength, and increase usable dissipation area.

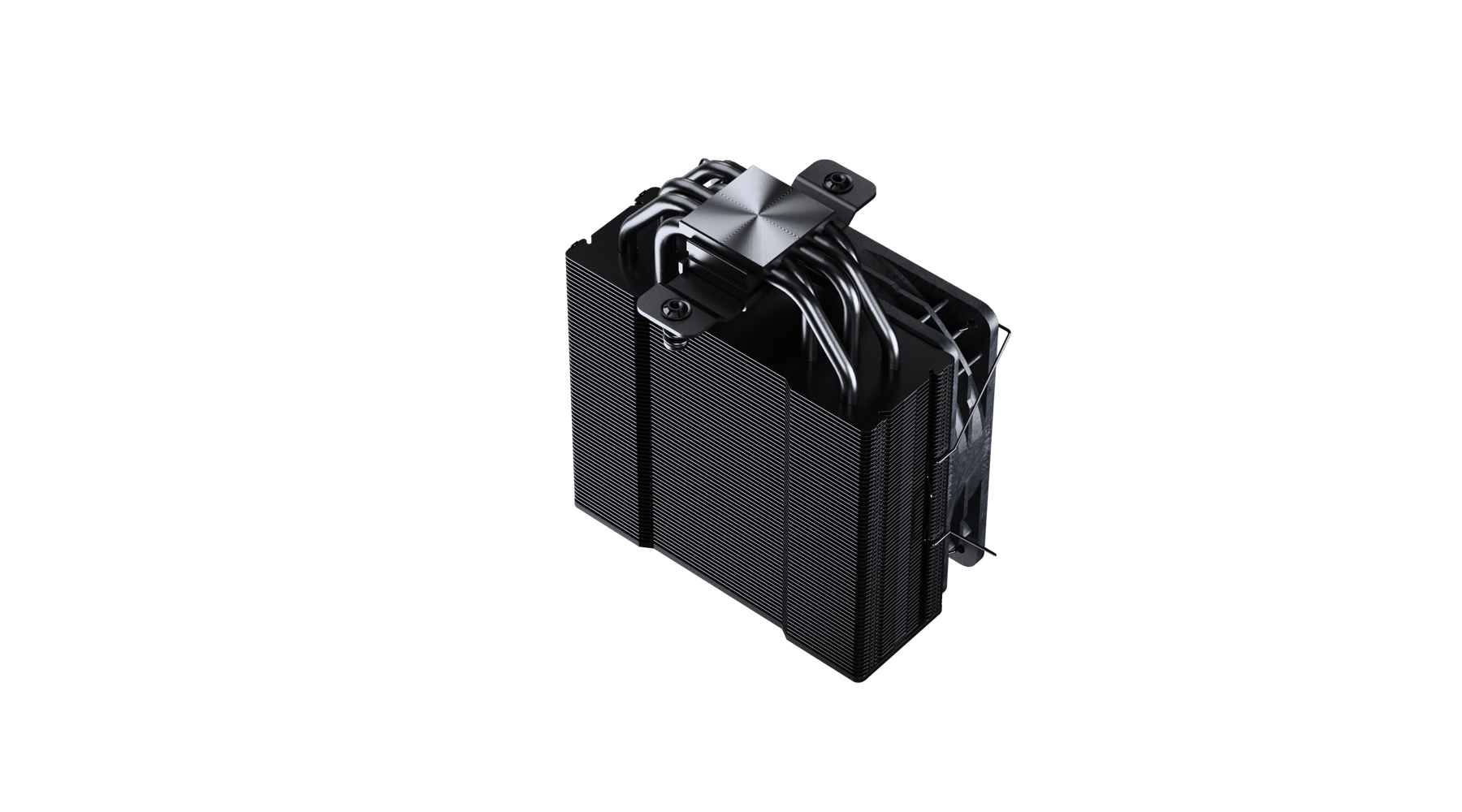

CPU Contact
Micro-convex copper base for new CPU hotspots.
The copper base is shaped to cover modern Intel and AMD heat concentration zones, supporting strong transfer from the processor into the heatpipes.

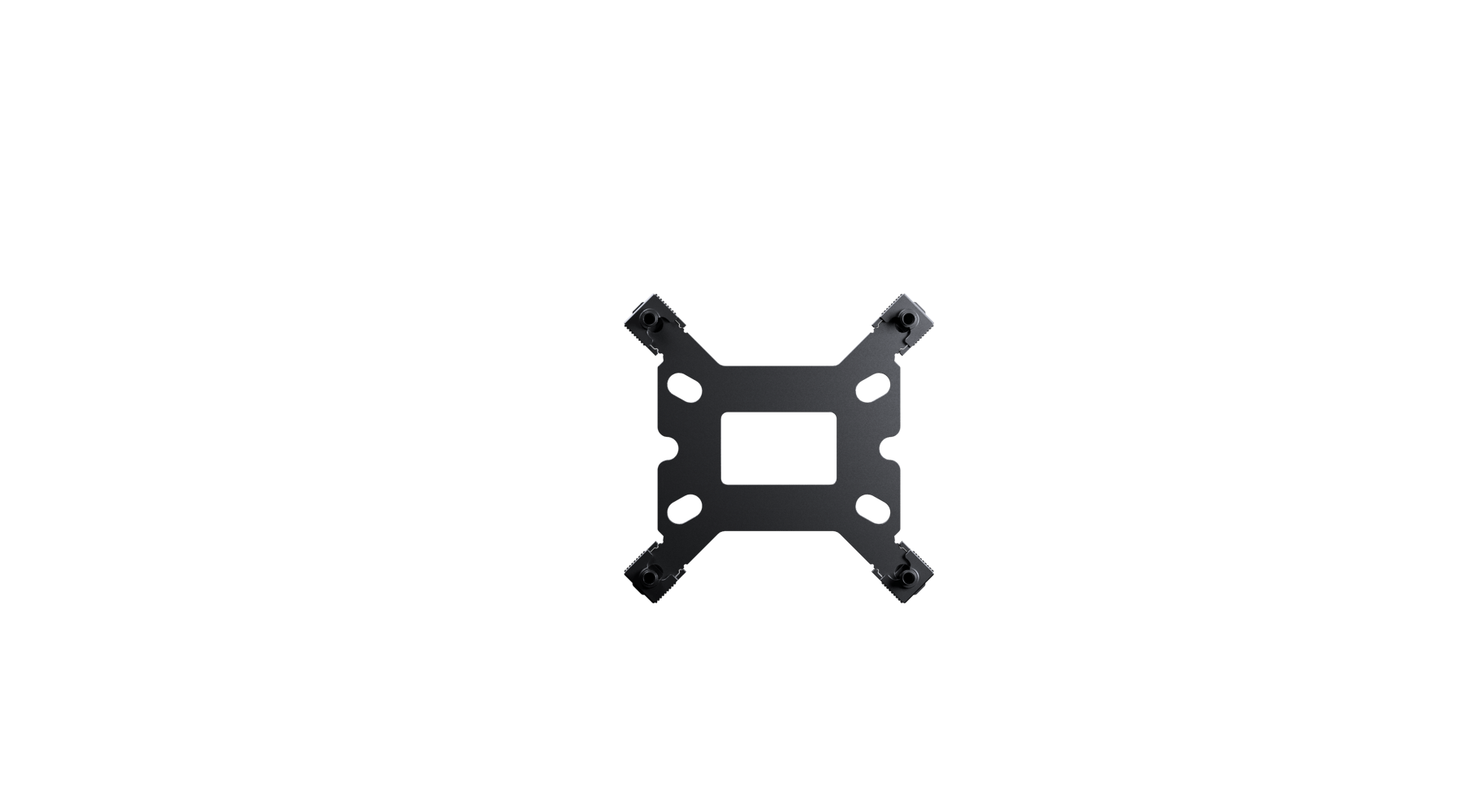

Platform Support
Intel and AMD mounting with a simplified backplate.
NT510 supports Intel LGA 115x / 1200 / 1700 / 1851 and AMD AM4 / AM5, with a multi-platform backplate designed to make installation cleaner.Technical Data
NT510 specification overview.
- Model
- NOVA NT510 LCP PRO BK
- CPU Support
- Intel LGA 115x / 1200 / 1700 / 1851, AMD AM4 / AM5
- Cooler Dimensions
- 130 x 71 x 157 mm
- Fin Thickness
- 0.35 mm
- Heatpipe Specification
- 6 mm x 5 heatpipes
- Structure
- Single tower, black-coated fins and heatpipes
- Fan Size
- 120 x 120 x 25 mm
- Fan Quantity
- 1
- Fan Bearing
- Dual ball bearing
- Weight
- 160 +/-10 g
- Speed
- 3000 / 2400 / 1600 RPM, +/-10%
- Airflow
- 131.32 / 104.54 / 70.38 CFM
- Static Pressure
- 6.55 / 4.64 / 2.15 mm-H2O
- Noise
- 45.56 / 39.81 / 29.6 dBA
- Rated Voltage
- 12V
- Current
- 490 mA
- Power
- 5.88W
- Fan Connector
- 4-pin PWM
- Warranty
- 5 years

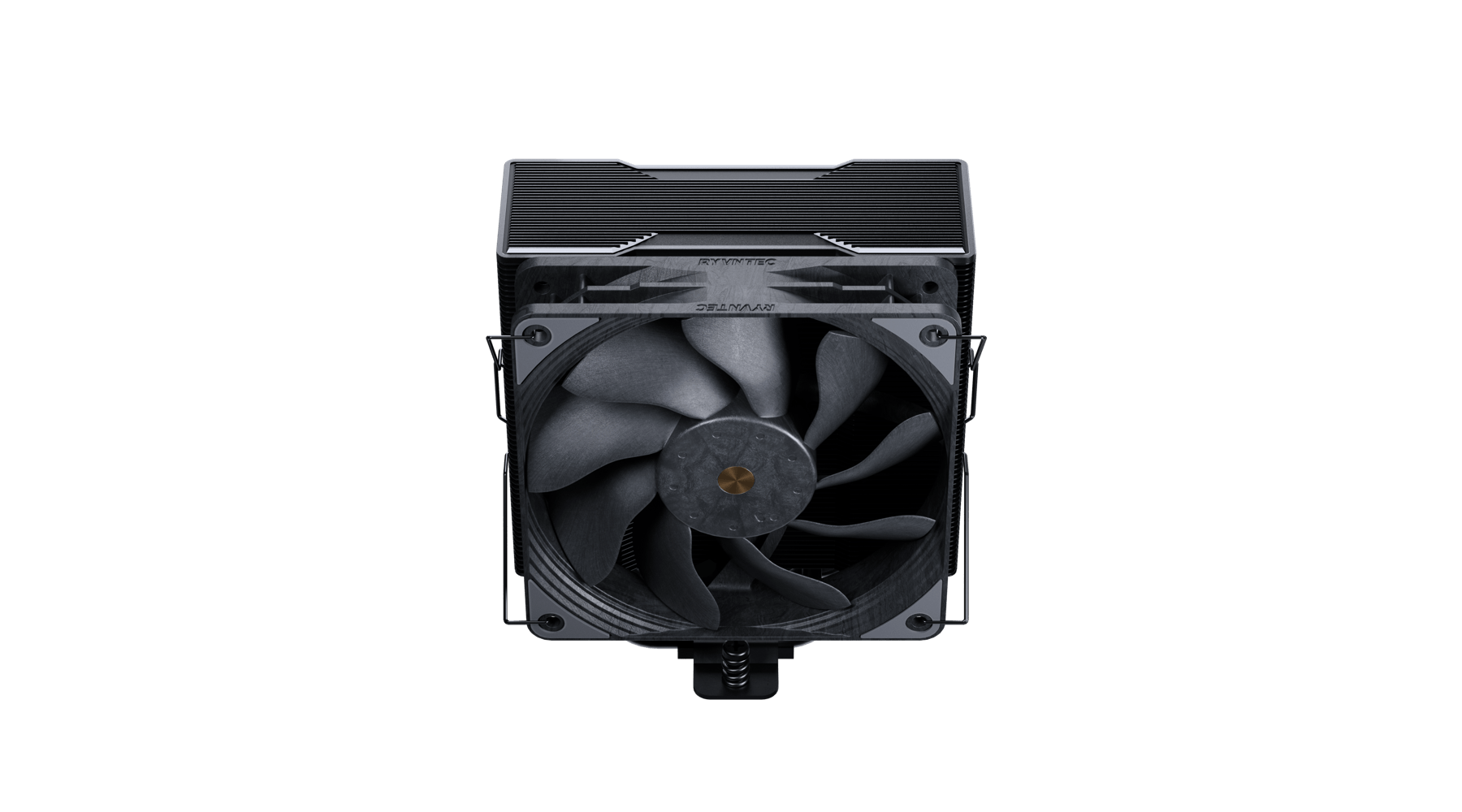

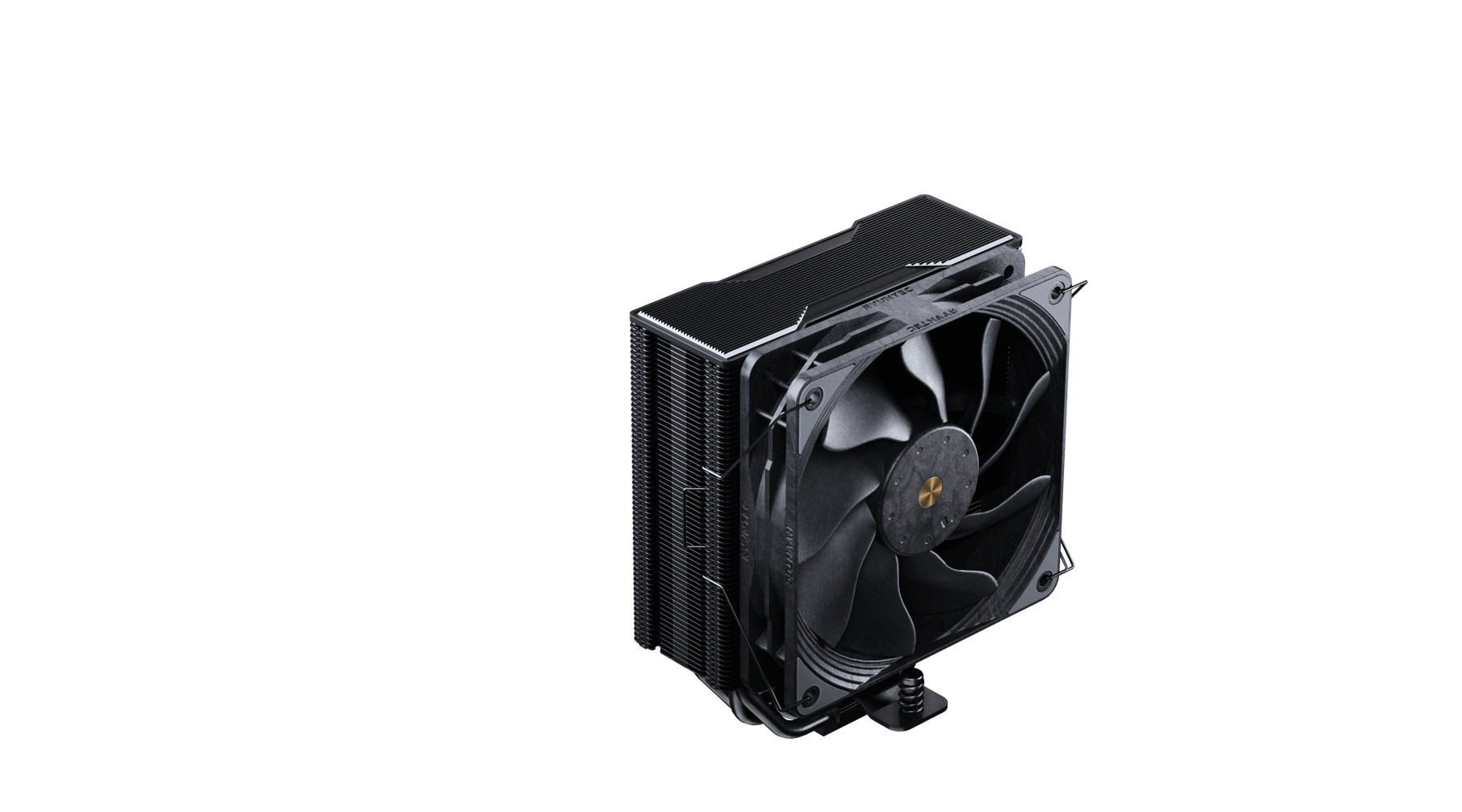

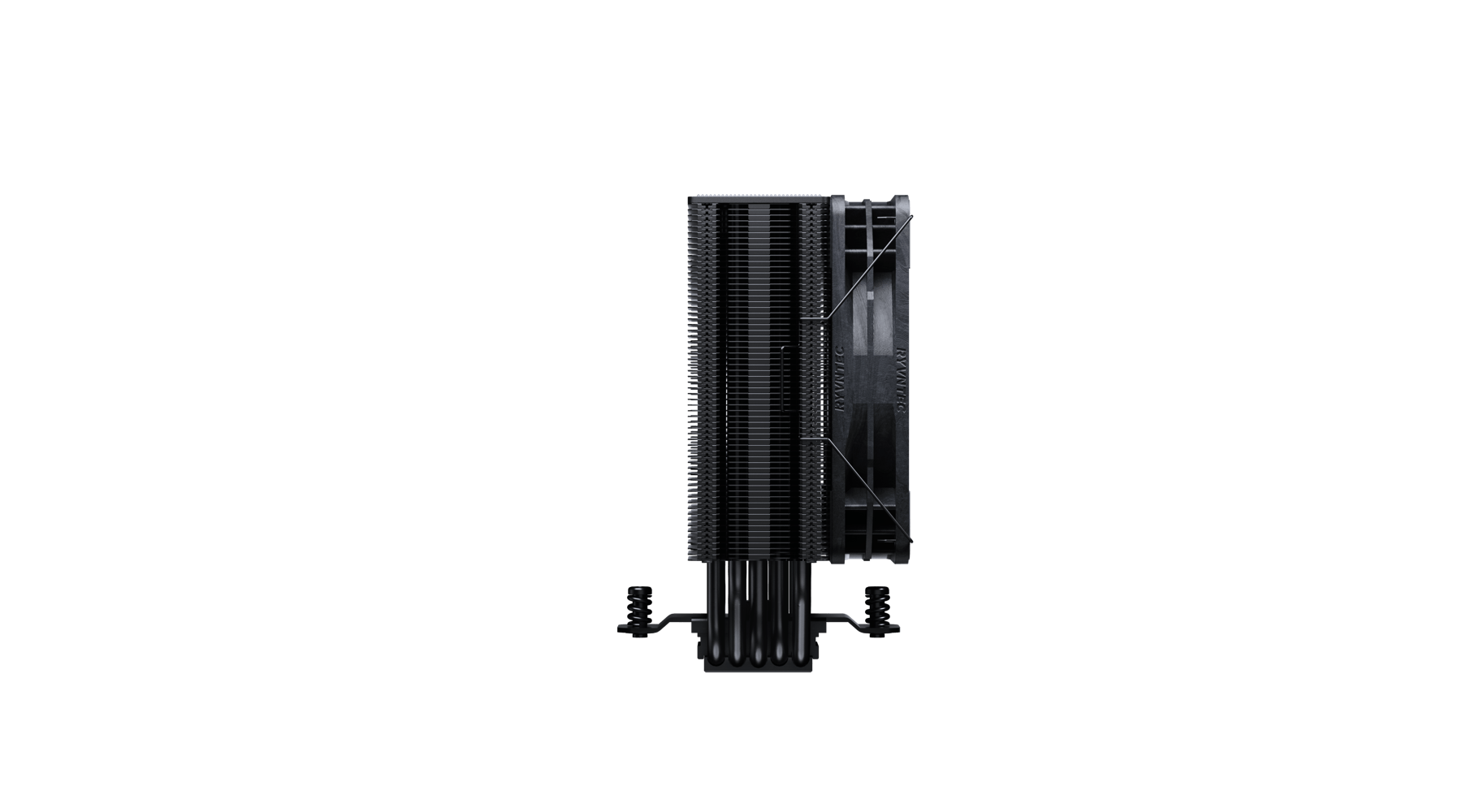

Product Views
