RF Series Case Fan
RF120
RF120F BK
A non-RGB 120 mm case fan built for clean black builds, steady PWM control, hydraulic bearing support, and tidy multi-fan cable routing.
No lighting. No extra visual noise. Just a clean 120 mm black fan for focused airflow.
RF120 Design
Everyday cooling with the same restrained Ryvntec detail.
RF120 keeps the RE120 platform language but removes ARGB lighting for builds that need a quieter visual profile, simpler wiring, and reliable case airflow.

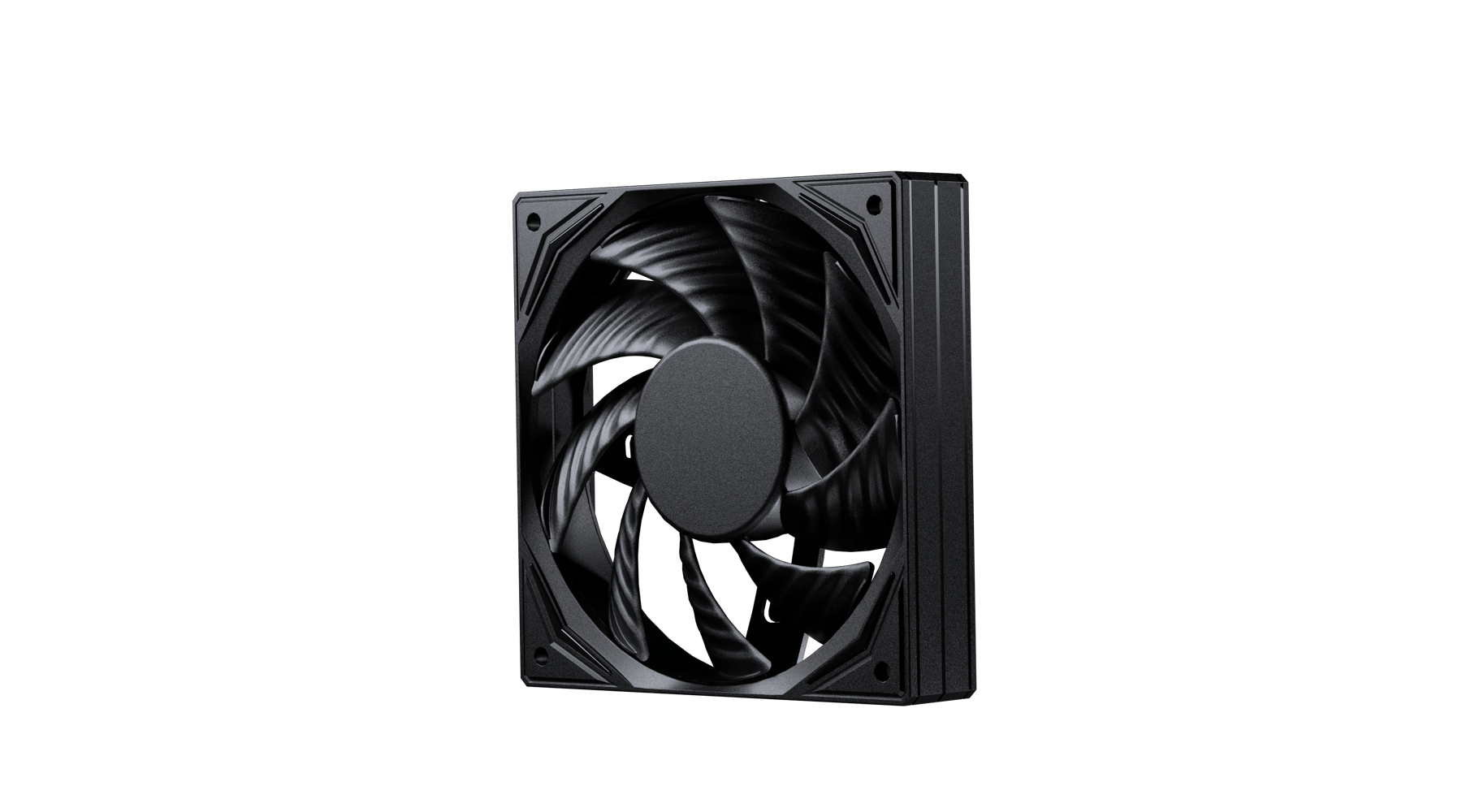

Non-RGB Build
Matte black form for understated case layouts.
RF120 is designed for builds where the fan should blend into the chassis, keeping the cooling hardware clean without adding lighting layers.

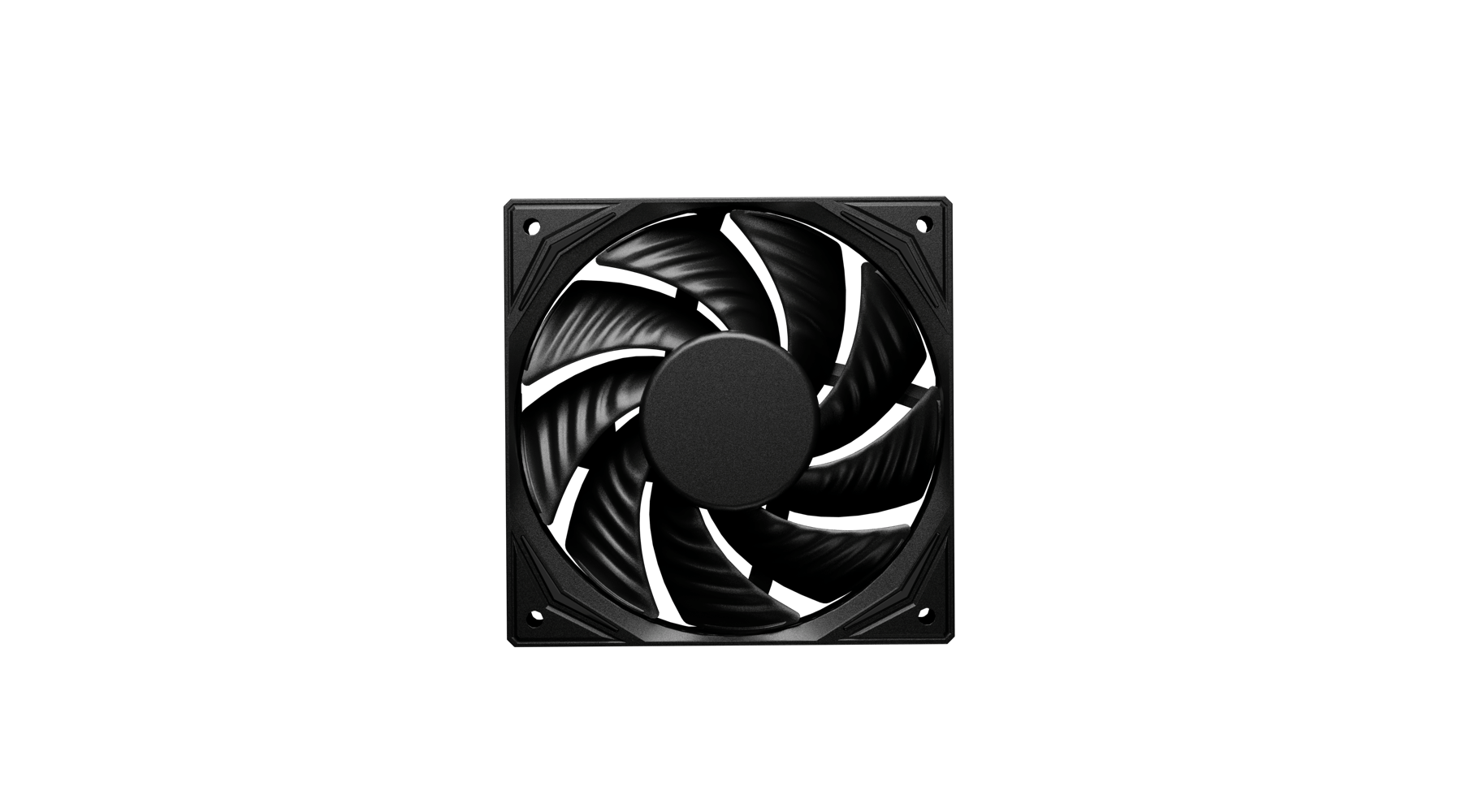

Cooling Blade
Balanced airflow for standard 120 mm positions.
The broad black blade profile is tuned for steady case intake or exhaust, with up to 53.06 CFM airflow and 1.63 mmH2O static pressure.

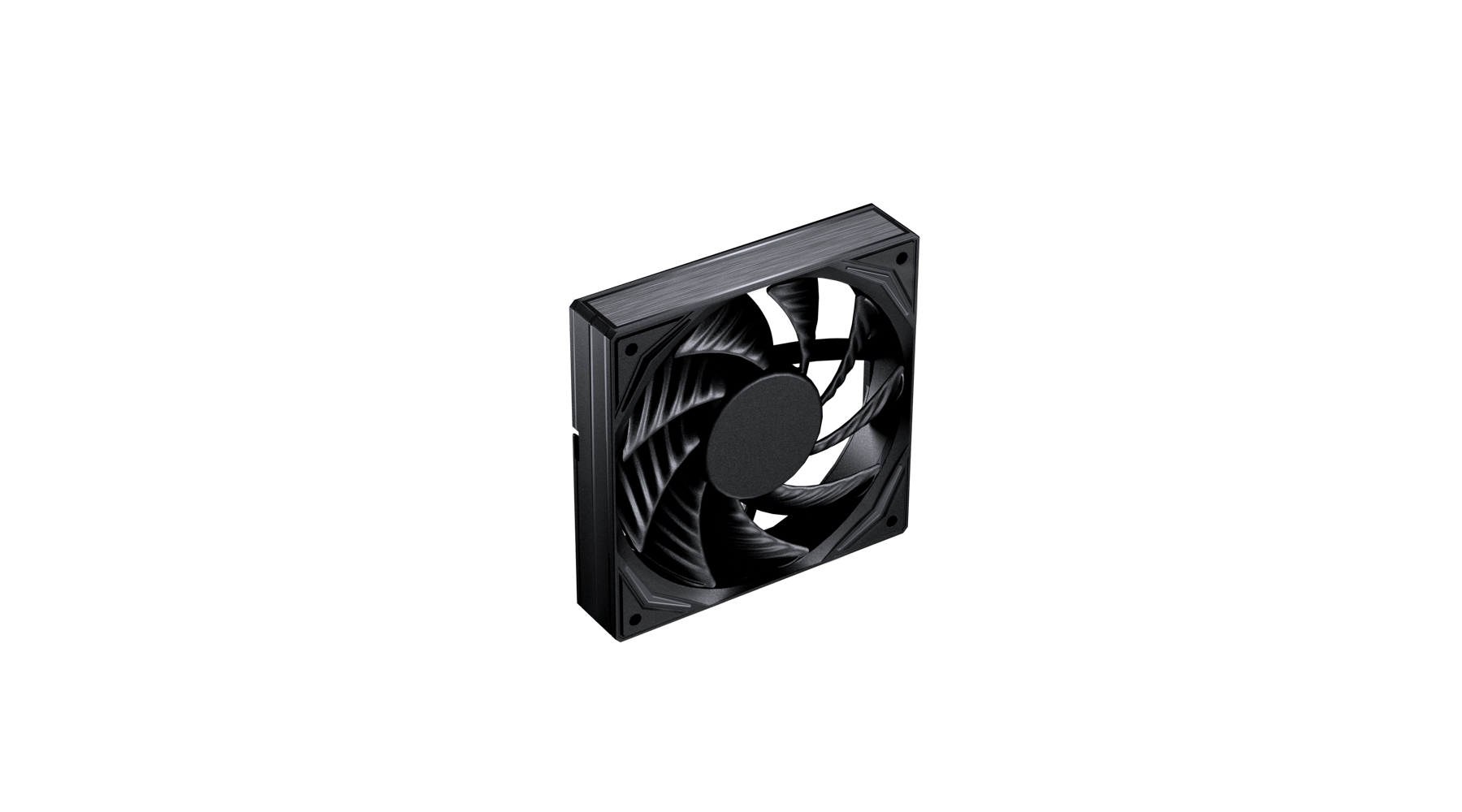

Frame Detail
120 x 120 x 25 mm compatibility.
A standard 25 mm frame fits common case fan mounts while the side surface keeps the same clean geometric detail used across the fan family.

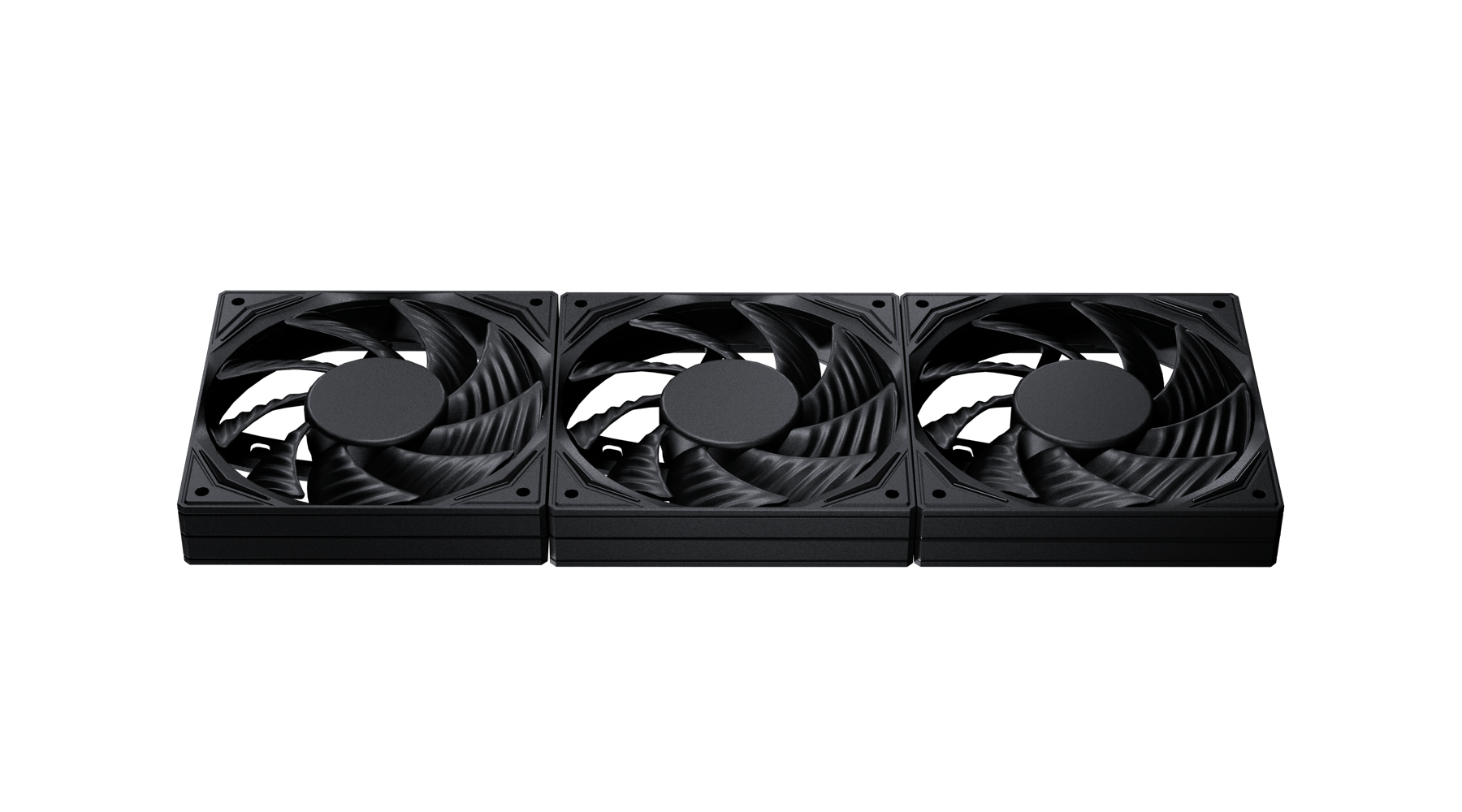

Daisy-Chain Wiring
Cleaner installation for multi-fan layouts.
4-pin PWM male/female connectors support serial connection between fans, reducing cable clutter across front, top, or side fan arrays.

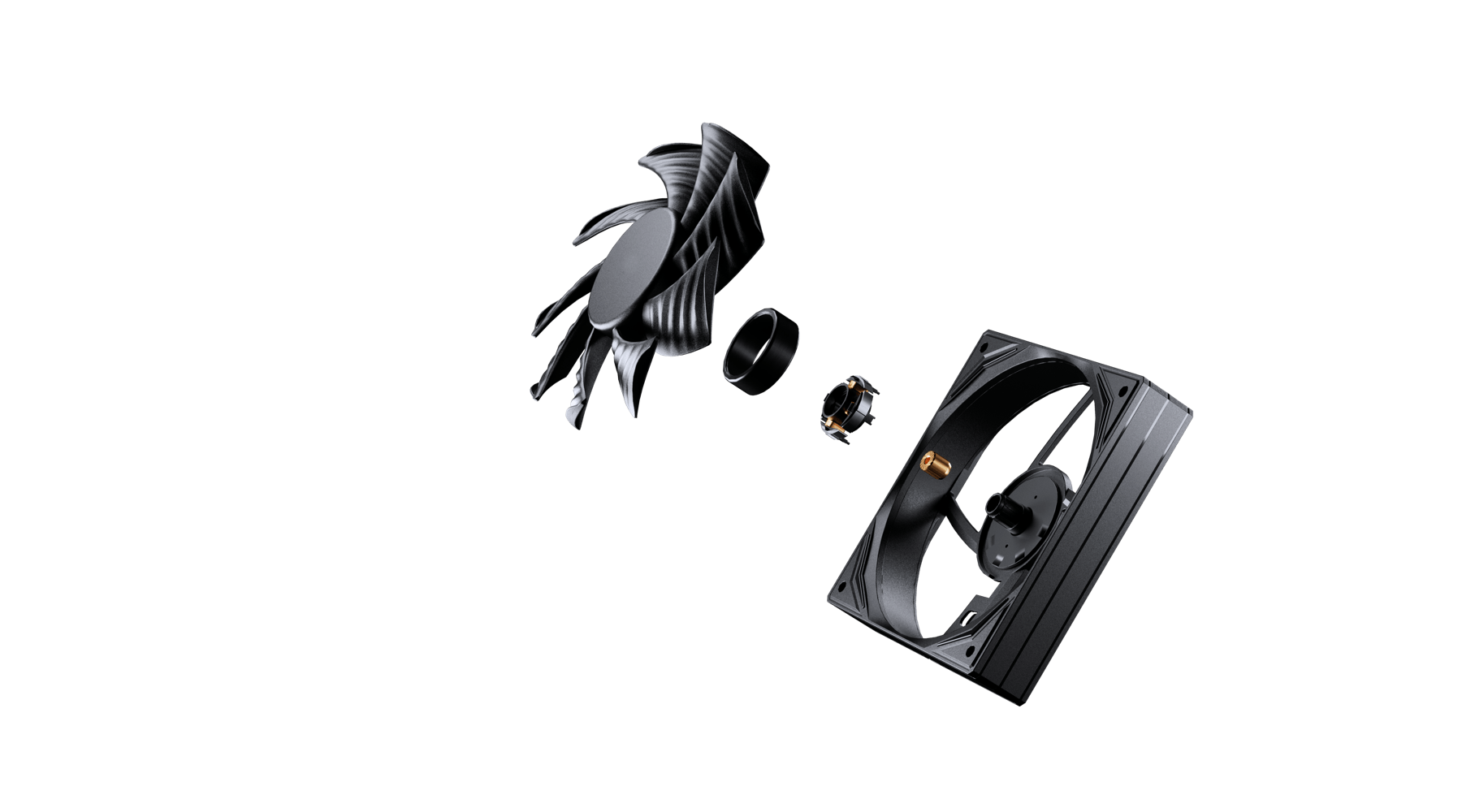

PWM + Bearing
Controlled speed with hydraulic bearing support.
500-1600 RPM PWM control lets the fan scale with system load, while the hydraulic bearing supports long daily operation with lower mechanical fuss.Technical Data
RF120 specification overview.
- Model
- RF120F BK
- Color
- Black
- Dimensions
- 120 x 120 x 25 mm
- Weight
- 140 g
- Speed
- 500-1600 RPM
- Airflow
- 53.06 CFM max
- Static Pressure
- 1.63 mm-H2O
- Noise
- 28.09 dB(A) max
- Bearing
- Hydraulic bearing
- Rated Voltage
- 12V DC
- Rated Current
- 0.12A
- Fan Power
- 1.44W
- Fan Connector
- 2510 4-pin PWM daisy-chain, 500 mm
- Lighting
- None
Product Views
