Hurricane Series
R25
LCP PRO BK
Full LCP frame and impeller, 0.4 mm blade-frame clearance, 131.32 CFM airflow, 6.55 mm-H2O static pressure, 3-phase 6-pole motor, and three PWM profiles.
Hurricane Series engineering in a standard 120 x 25 mm format. LCP. Clearance. Motor. Bearing. Pressure.
R25 Performance Package
Hurricane airflow and pressure for standard 120 mm builds.
R25 carries the Hurricane Series performance package into a standard 120 x 25 mm body: full LCP construction, precise 0.4 mm clearance, high airflow, focused static pressure, a 3-phase 6-pole motor, and long-life NMB 830 two-ball bearing support.

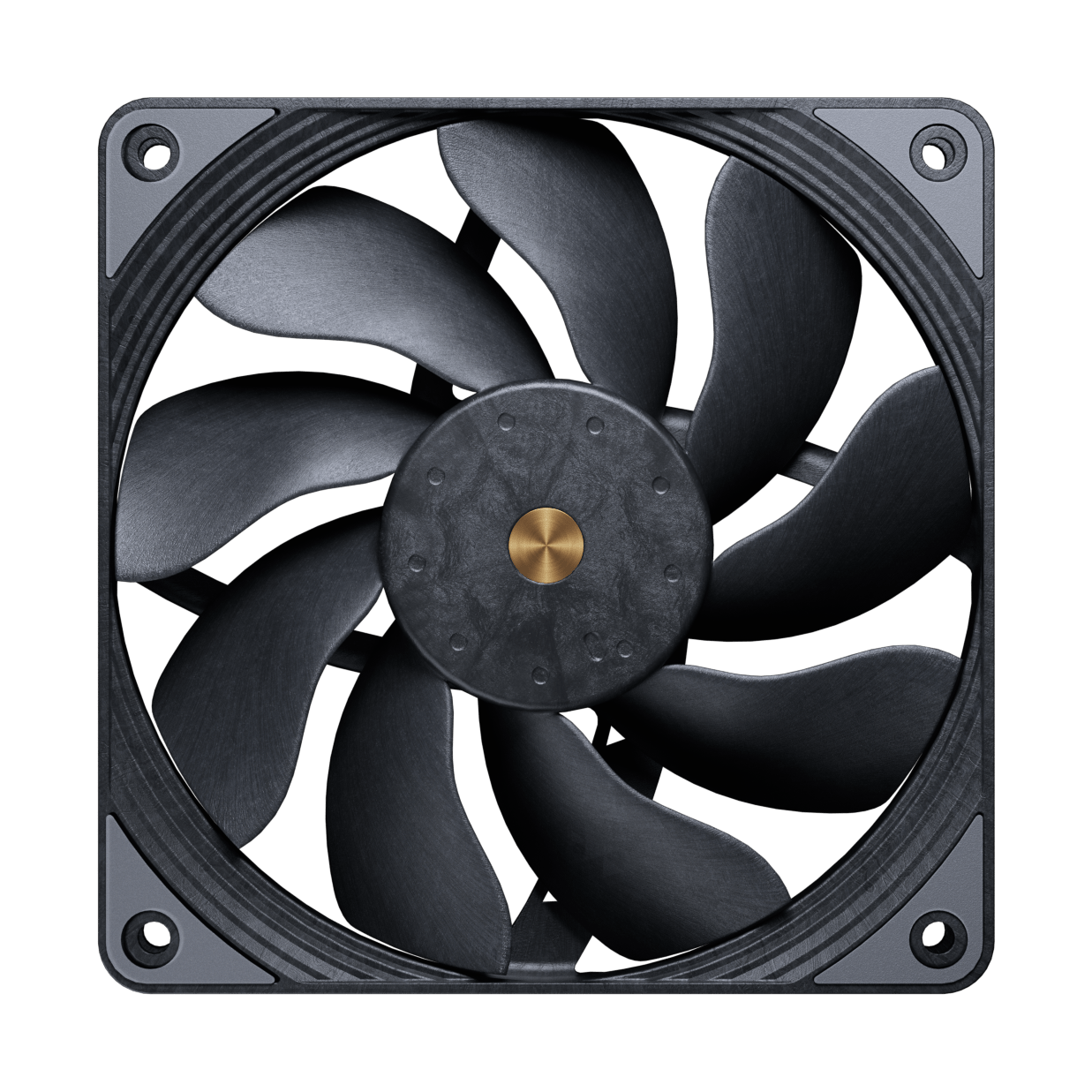

Airflow + Static Pressure
High output that still works through resistance.
131.32 CFM / 6.55 mm-H2OR25 is tuned for more than open-air airflow. Its airflow ceiling and pressure rating work together for filtered intakes, radiators, fin stacks, and compact thermal paths.

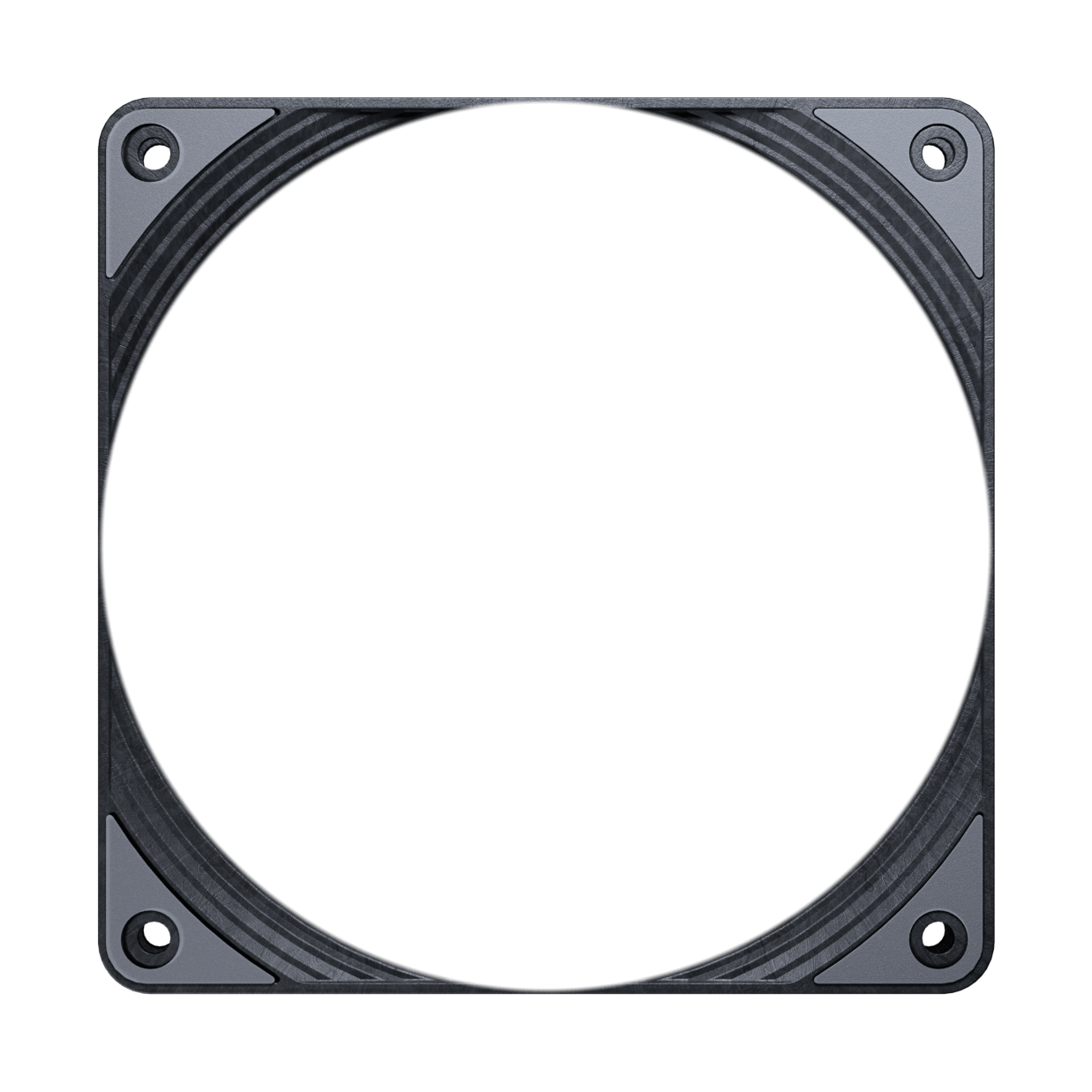

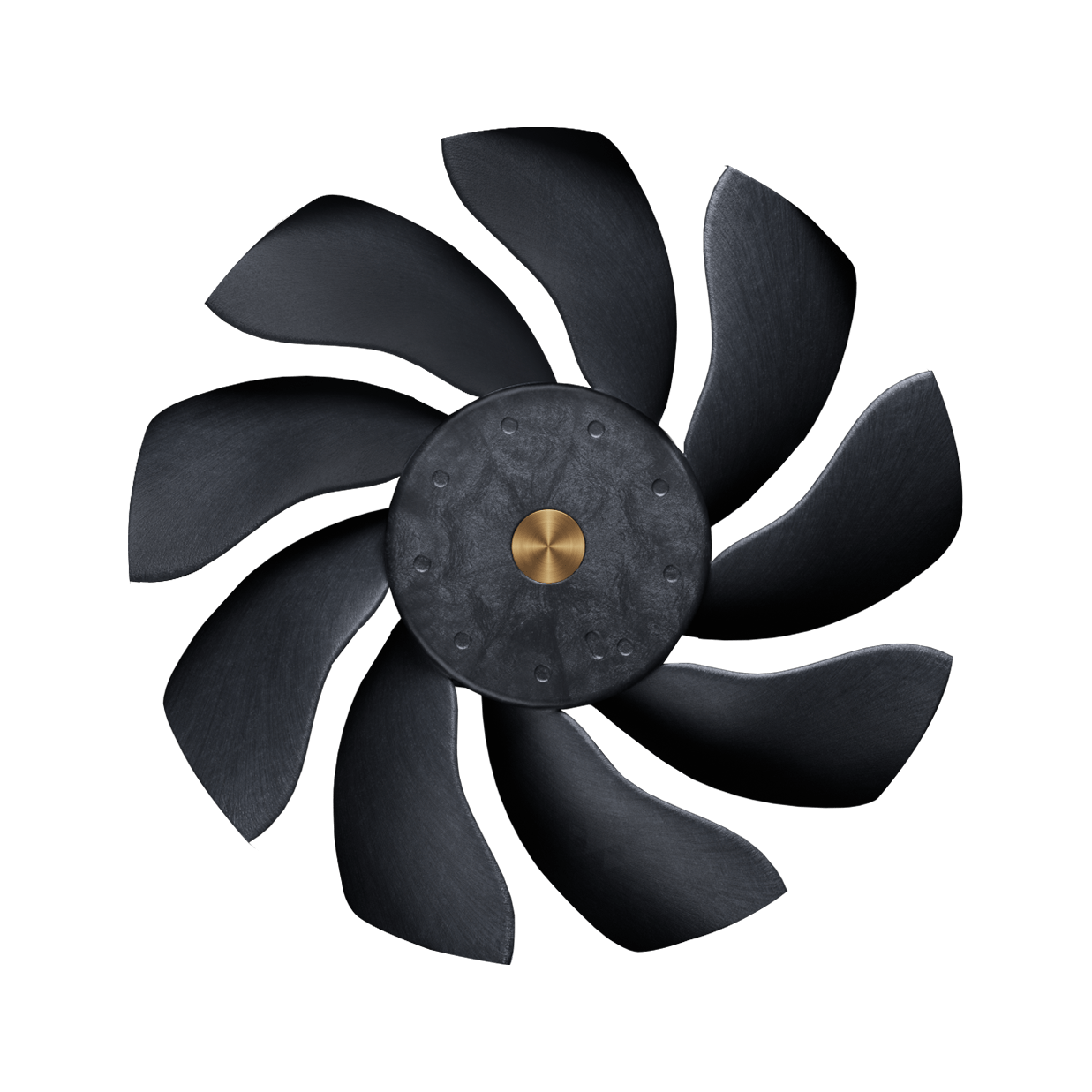

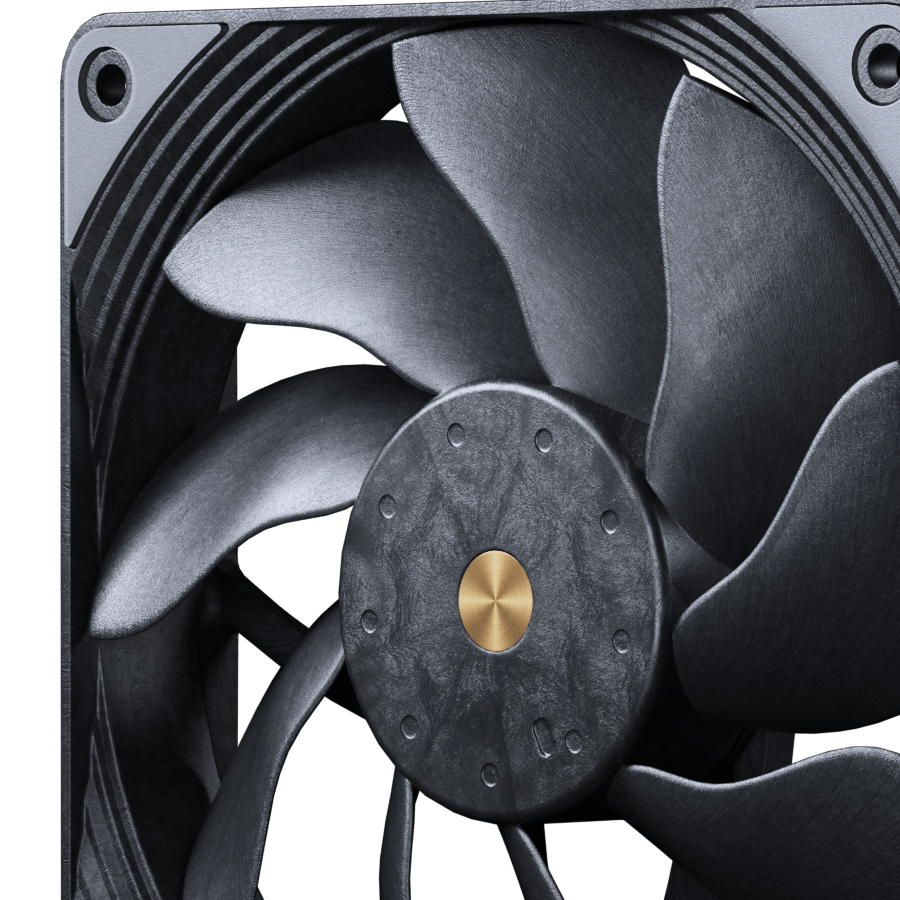

Full LCP Construction
The frame and impeller share the same rigid material language.
Full LCPR25 uses full LCP construction across both frame and impeller to improve dimensional stability under high speed, high pressure, and sustained thermal load.

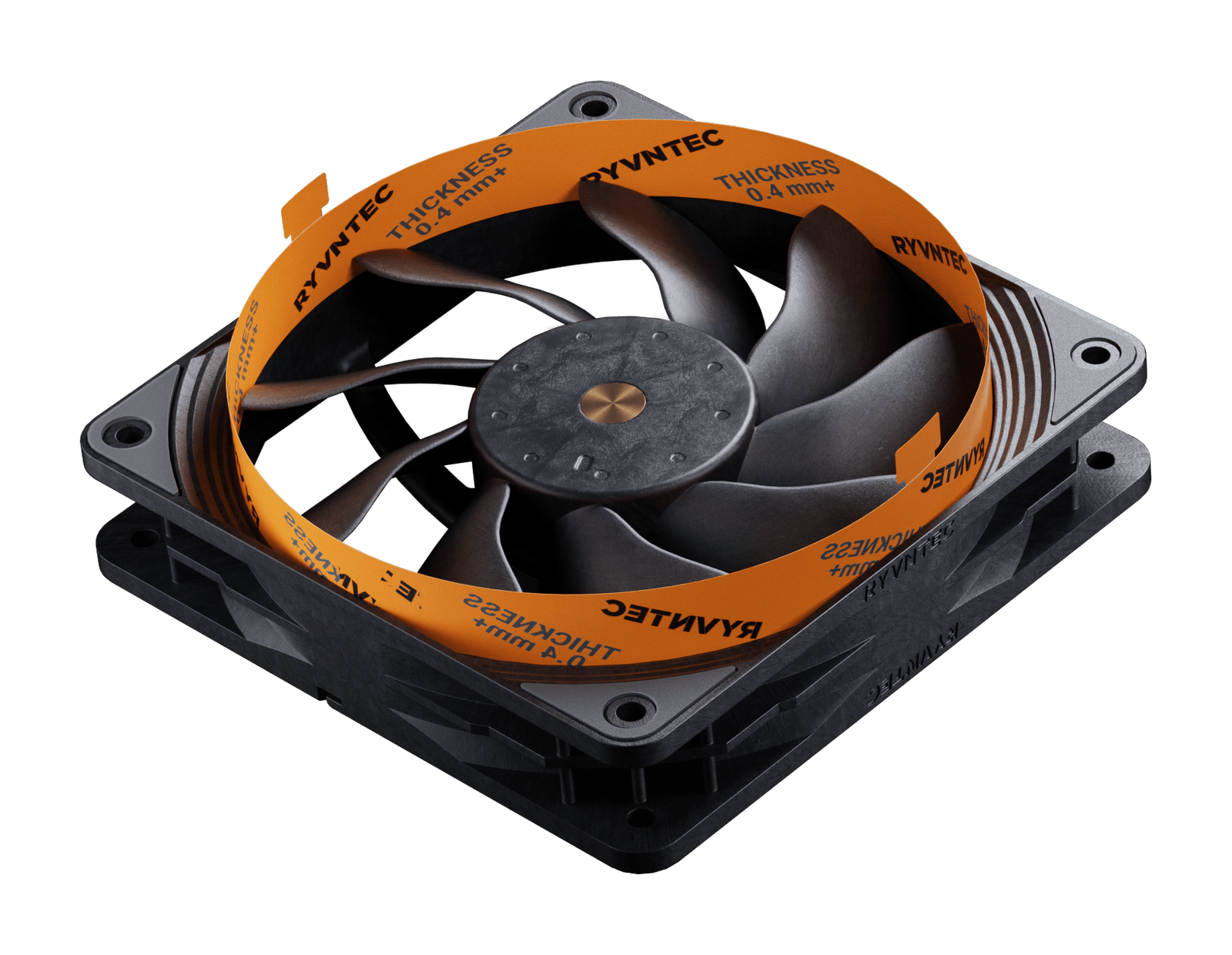

0.4 mm Blade-Frame Clearance
A tighter gap keeps pressure from leaking sideways.
0.4 mmThe 0.4 mm frame-to-blade gap helps reduce side leakage, keeping more airflow directed forward through filters, radiators, dense fins, and compact chassis paths.

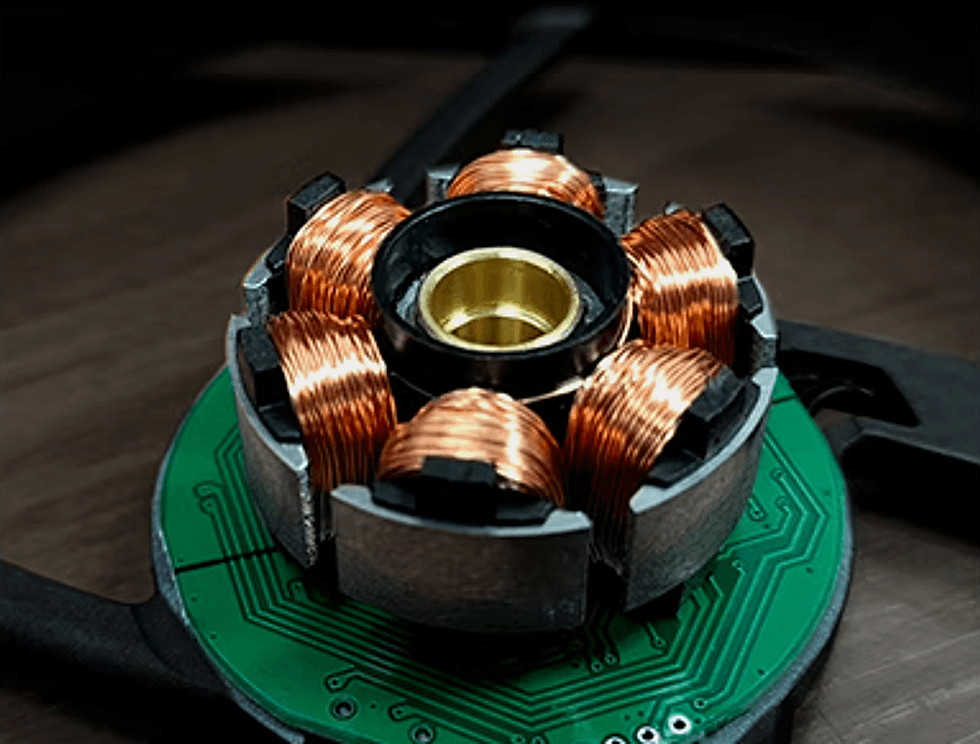

3-Phase 6-Pole Motor
A smoother drive system for controlled high-speed output.
3-phase 6-pole motorThe 3-phase 6-pole motor architecture supports smoother commutation and more stable torque delivery, helping the fan maintain controlled output across PWM profiles.

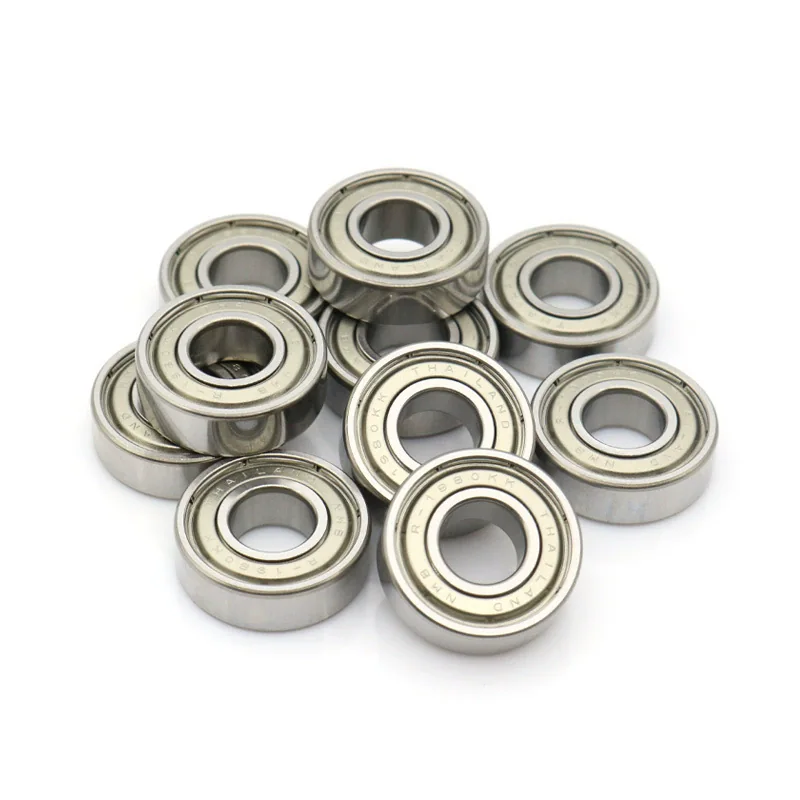

NMB Two-Ball Bearing
Precision bearing support for sustained high-speed rotation.
NMB 830 / 693-Z4R25 uses an NMB 830 two-ball bearing structure based on the 693-Z4 specification, supporting long service life, stable orientation, and sustained operation in performance builds.Pressure Logic
Airflow and pressure, designed to work together.
High airflow is only valuable when the fan can maintain control through restriction. R25 combines full LCP construction, precise 0.4 mm blade clearance, a 3-phase 6-pole motor, and three PWM profiles to keep airflow useful when it meets filters, radiators, fin stacks, and compact intake paths.3-phase 6-pole motor control
The 3-phase 6-pole motor architecture supports stable torque delivery and controlled PWM response under load.Less pressure leakage
The tight blade-frame clearance reduces side leakage, helping more of the airflow go forward through filters and fins.Numbers that work together
131.32 CFM defines the airflow ceiling, while 6.55 mm-H2O reflects pressure capability. Together, they describe a balanced 25 mm performance profile.
3-Mode PWM Control
Select the profile that matches the thermal load.
Hybrid, Performance, and Turbo profiles let R25 move from controlled daily airflow to full-speed pressure response without changing the fan hardware.Performance / 2400 RPM
A sustained profile for filtered intakes, radiators, fin stacks, and mixed workloads.
Technical Data
Hurricane R25 LCP PRO BK specification overview.
- Model
- Hurricane R25 LCP PRO BK
- Dimensions
- 120 x 120 x 25 mm
- Weight
- 160±10 g
- Material
- Full LCP frame and impeller
- Bearing
- NMB 830 two-ball bearing / 693-Z4
- Motor
- 3-phase 6-pole motor
- Speed Profiles
- 3000 / 2400 / 1600 RPM ±10%
- Airflow Profiles
- 131.32 / 104.54 / 70.38 CFM
- Static Pressure Profiles
- 6.55 / 4.64 / 2.15 mm-H2O
- Noise Profiles
- 45.56 / 39.81 / 29.6 dBA
- Blade Clearance
- 0.4 mm
- Rated Voltage
- 12 V
- Rated Current
- 490 mA
- Rated Power
- 5.88 W
- Control
- 4-Pin PWM / 3-mode profile
- MTTF
- >200,000 hours

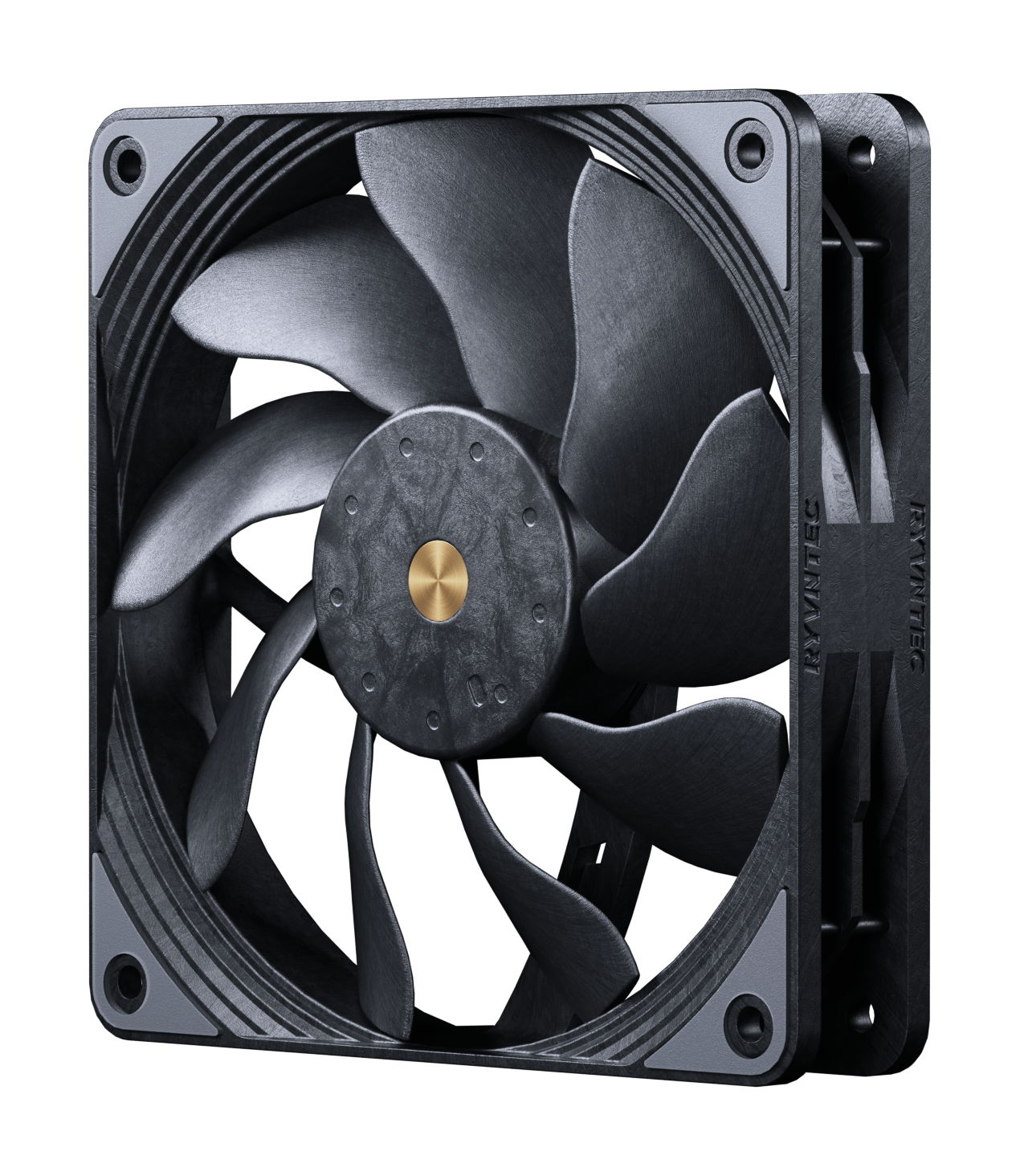

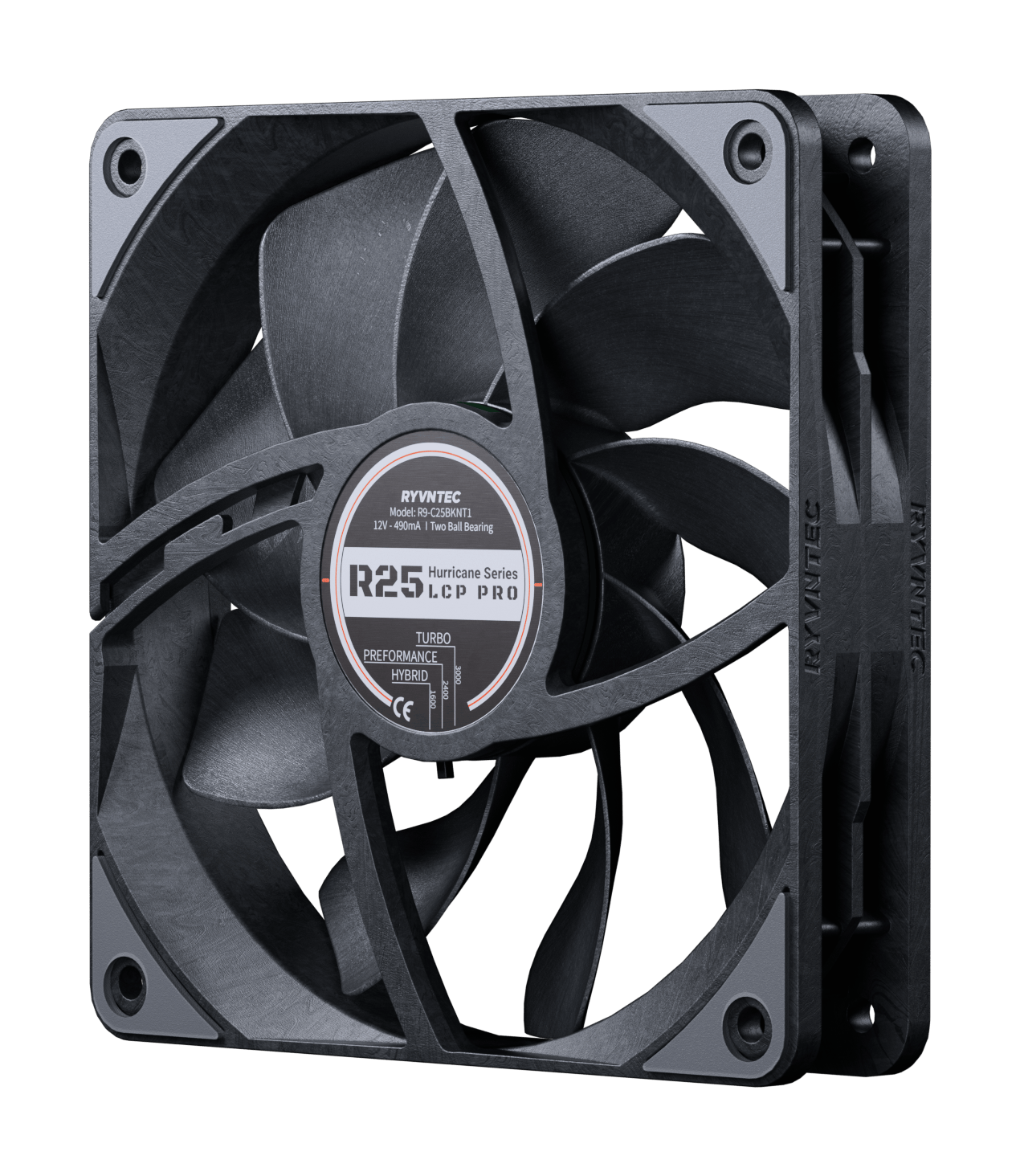

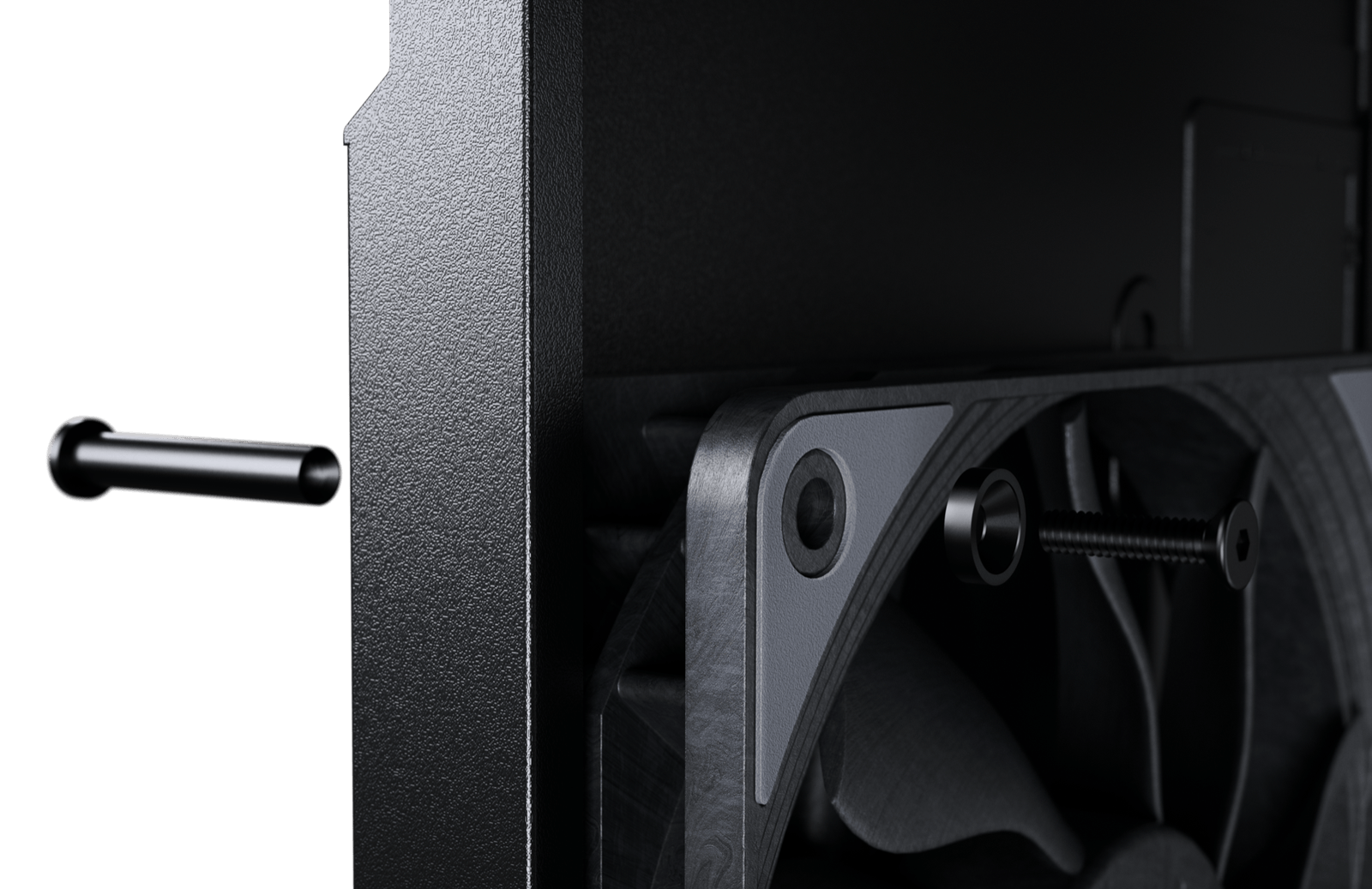

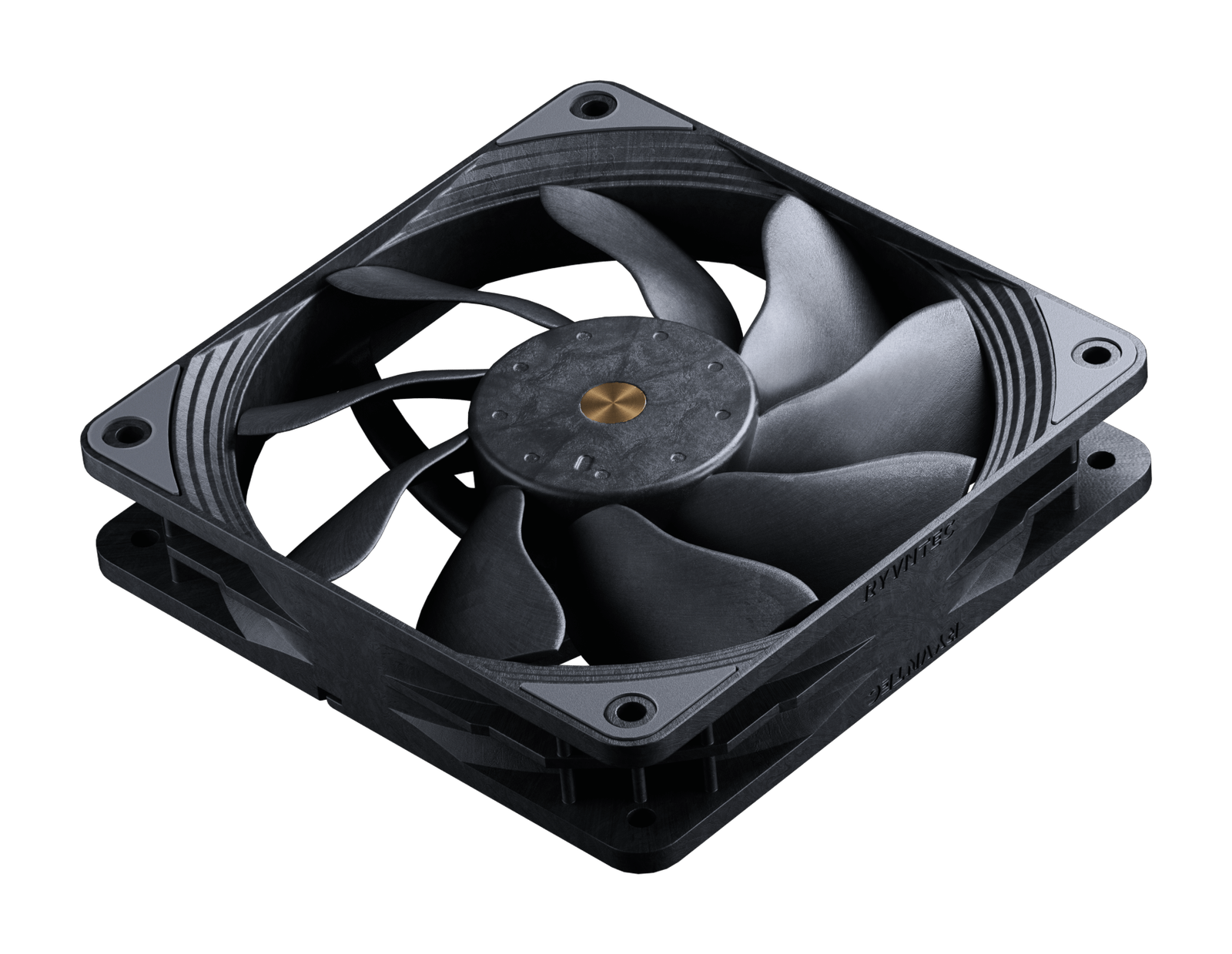

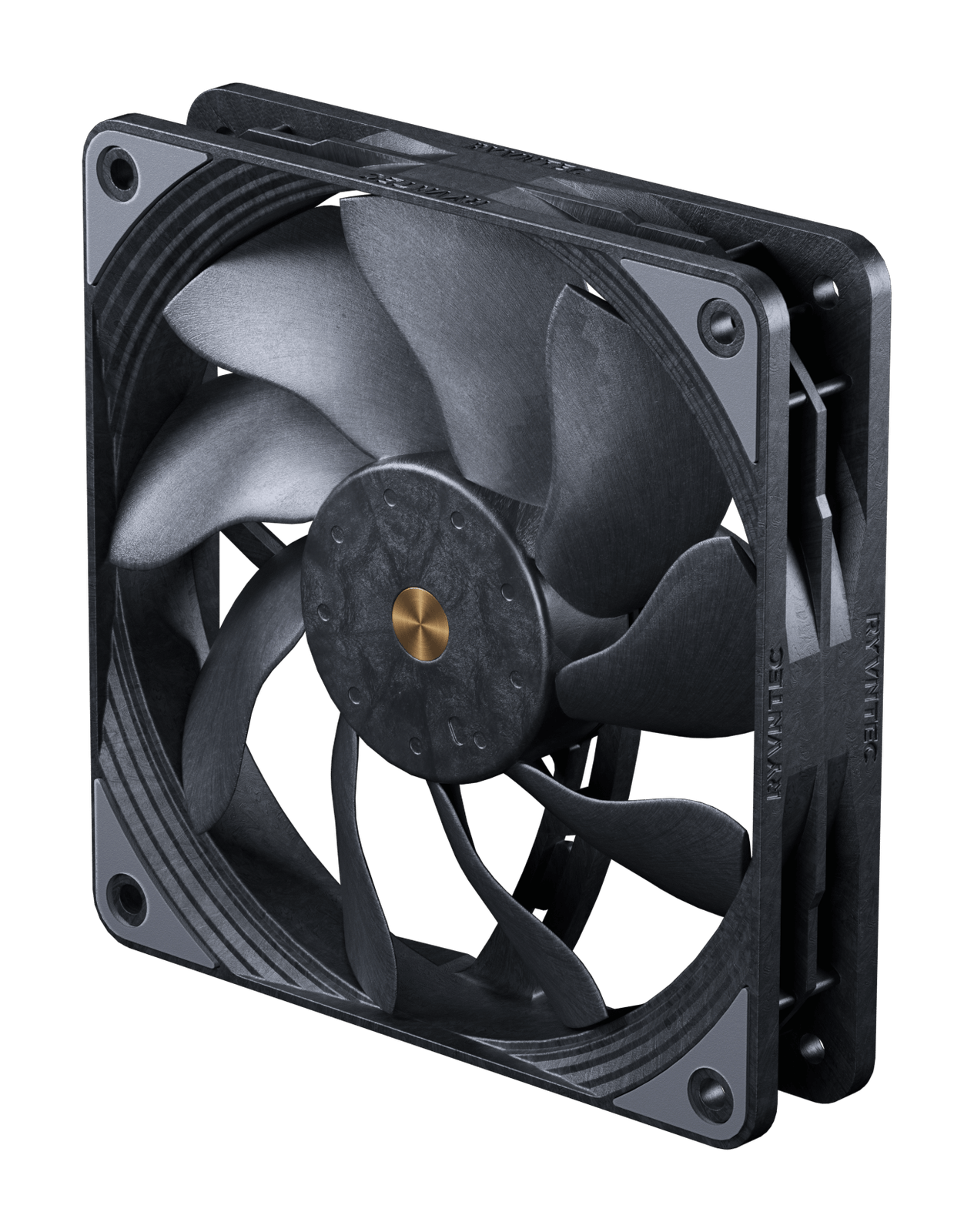

Product Views
